Pilot Guide Shoe

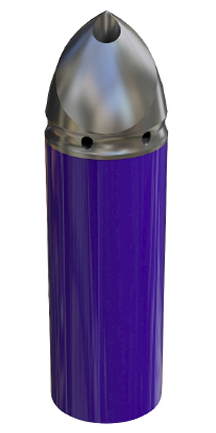

The Pilot Guide Shoe is a slick body aluminum nosed guide shoe to aid with the running of any casing, liner and screen applications. Utilized where the operator has concerns over potentially difficult wellbore conditions and a conventional cement nosed float shoe is not considered robust enough.

  • Wellbore seeking eccentric guide nose negotiates troublesome formations
  • EZI-Drill® aluminum guide nose to aid drill-out without compromising nose strength
  • Flow ports offering 360° flow area
  • Slick body design helps reduce ECD
  • Integral float valve – Spec API RP 10F Cat IIIC

  • Standard 5,000 PSI & 10,000 PSI valves
  • Single & double valve options
  • Concentric or other nose options available
  • All API and premium connections available
  • All material casing grades available
